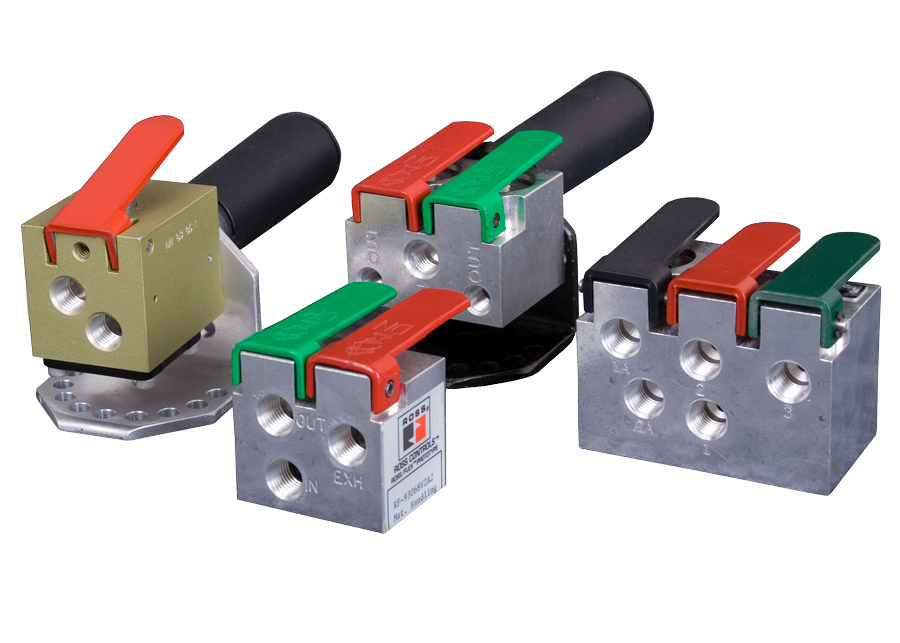

Pendant Valves 2025A3231
- A durable pneumatic solution that can be used anywhere manual control of devices is needed, such as an air hoist, air motor, or counterbalance cylinder
- Ideal for use on or with material handling devices such as overhead cranes or air hoists
- Can withstand even the toughest environments
Product Information
| Valve Type | Directional Control |
| Series | Pendant |
| Application | High Flow |
| Actuation | Manual Pendant |
| Function | 2/2 |
| Default Position | Normally Open |
| Return | Spring |
| Thread Type | NPT |
| Inlet Pipe Size | 3/8" |
| Outlet Pipe Size | 3/8" |
| Construction | Poppet |
| Mounting | Inline |
| Avg Cv | 2 |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Ambient Temperature (Celsius) | -40 to 80 |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Media Temperature (Celsius) | -40 to 80 |
| Fluid Media | Filtered Air |
| Operating Pressure | 0 to 150 psig (0 to 10 bar) |
| Operating Pressure (bar) | 0 to 10 |
| Weight | 3.0 lb (1.36 kg) |
| Weight (kg) | 1.36 |
| Valve Body Material | Aluminum |
| Number of Levers | 2 |
| Number of Handles | 1 |
| Protective Cover | Not Included |
| Number of Valves | 2 |
+
