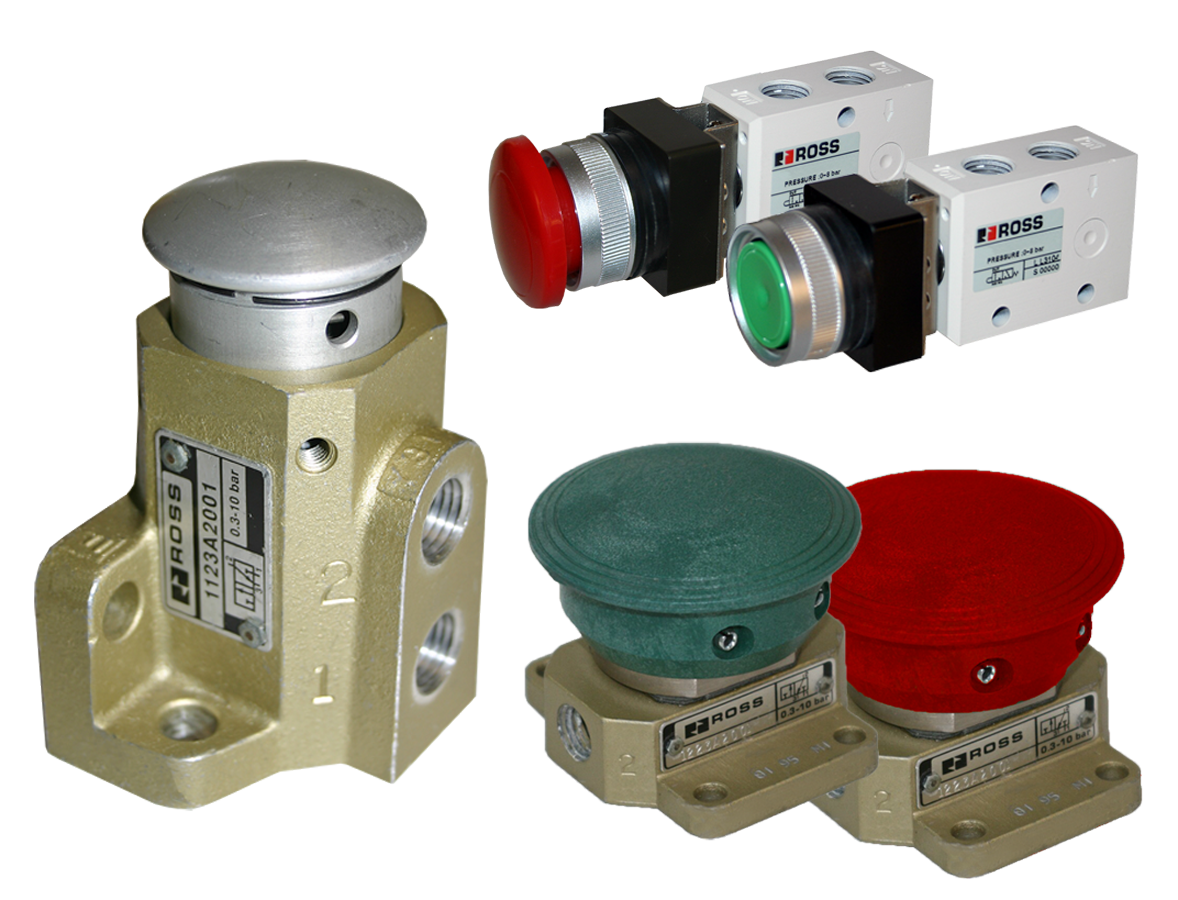

Palm & Push Button Valves 1121A2001
- Pushbutton Valves
- Palm Button Valves
- Heavy-Duty Palm Button Valves
Product Information
| Valve Type | Directional Control |
| Series | 11 |
| Application | General |
| Actuation | Manual Palm Button |
| Function | 2/2 |
| Default Position | Normally Closed |
| Return | Spring |
| Thread Type | NPT |
| Inlet Pipe Size | 1/4" |
| Outlet Pipe Size | 1/4" |
| Exhaust Pipe Size | 1/4" |
| Construction | Poppet |
| Mounting | Inline |
| Avg Cv | 0.5 |
| Ambient Temperature | -10 to 175 F (-23 to 80 C) |
| Ambient Temperature (Celsius) | -23 to 80 |
| Media Temperature | -10 to 175 F (-23 to 80 C) |
| Media Temperature (Celsius) | -23 to 80 |
| Fluid Media | Filtered air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Operating Pressure (bar) | 0.3 to 10 |
| Length | 1.82 in (46 mm) |
| Length (mm) | 46 |
| Width | 2.76 in (70 mm) |
| Width (mm) | 70 |
| Height | 3.27 in (83 mm) |
| Height (mm) | 83 |
| Weight | 1.0 lb (0.5 kg) |
| Weight (kg) | 0.5 |
| Valve Body Material | Cast Aluminum |
| Button Type | Palm |
+
Palm & Push Button Valves
1121A2001
Contact Us for a 3D Model
+
Palm & Push Button Valves
1121A2001
Contact ROSS India for Ordering Information
+
