Flow Controls 1968F1004
- Low profile, high capacity & right angle series available
- Available with NPT & BSPP port threads
- Low profile series includes slot & knob adjustment options
- High capacity series includes inline & offset orientation options

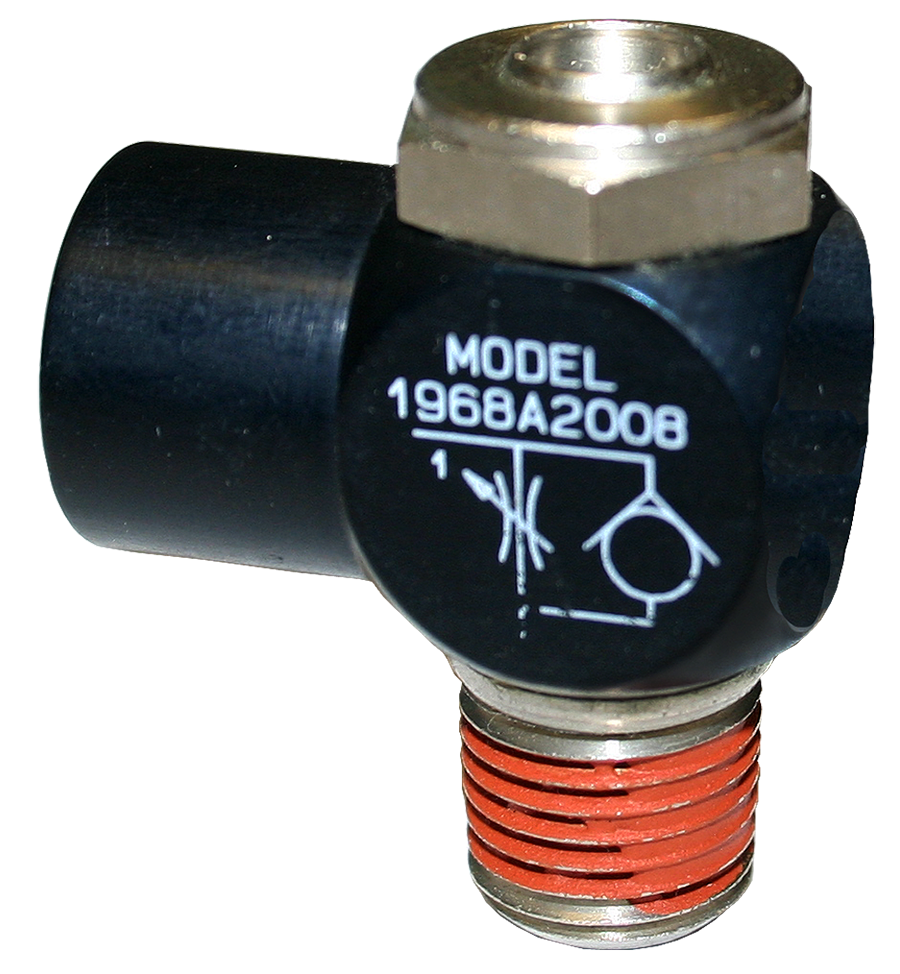

- Right angle series includes slot & knob adjustment options
Product Information
| Valve Type | Flow Control Valve |
| Series | 19 |
| Application | General |
| Actuation | Pneumatic |
| Function | 2/2 |
| Thread Type | NPT |
| Inlet Pipe Size | 1/8" |
| Outlet Pipe Size | 1/8" |
| Construction | Poppet |
| Mounting | Inline |
| Avg Cv | 0.5 |
| Ambient Temperature | 41 to 140 F (5 to 60 C) |
| Ambient Temperature (Celsius) | 5 to 60 |
| Media Temperature | 41 to 140 F (5 to 60 C) |
| Media Temperature (Celsius) | 5 to 60 |
| Fluid Media | Filtered Air |
| Operating Pressure | 150 psi (10.3 bar) |
| Operating Pressure (bar) | 10.3 |
| Length | 40 in (1.6 mm) |
| Length (mm) | 1.6 |
| Width | 16 in (0.6 mm) |
| Width (mm) | 0.6 |
| Height | 51 in (2.0 mm) |
| Height (mm) | 2 |
| Weight | 0.18 lb (0.08 kg) |
| Weight (kg) | 0.08 |
| Valve Body Material | Aluminum |
| Adjustment | Slot |
| Profile | Low |
+
Flow Controls
1968F1004
Contact Us for a 3D Model
+
Flow Controls
1968F1004
Contact ROSS India for Ordering Information
+
